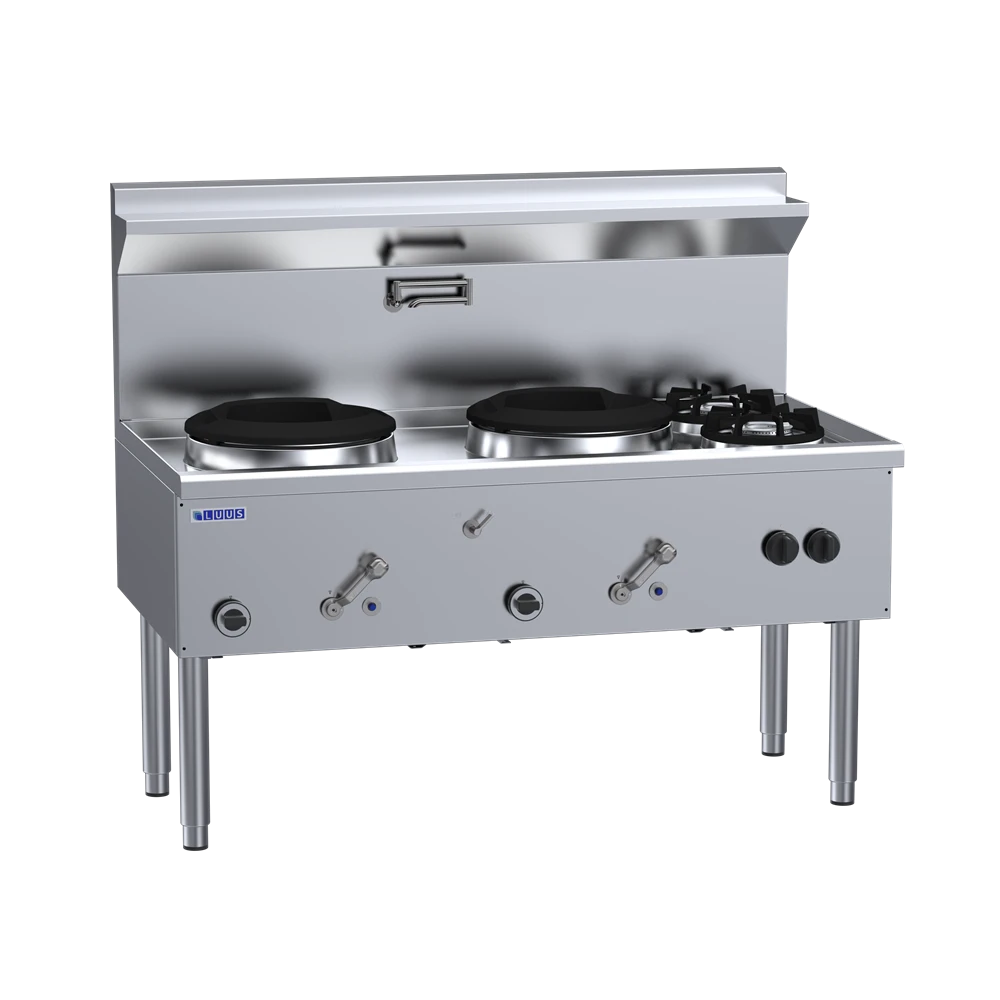

Anvil Luus WZ-2C2B – Waterless Wok – 2 Chimney Burners And 2 Open Burners

• 110 MJ 24 jet chimney burners with pilot & FFD
• 333mm diameter standard size cast-iron wok ring
• 28 mj side burners with FFD standard (Pilot Extra)
• Air gap cooling system
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Wider front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer
• Zinc-aluminium Alloy burner handles

Overall Construction

• Heavy duty construction
• Full skirt, enamelled cast-iron rings
• 1.5mm 304 stainless steel one-piece pressed deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback and front cover 1.2 mm 304 stainless steel
• Integrated hob 1.5mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Undertrays 0.9mm stainless steel
• Stainless steel removable legs
• 30mm height adjustment range
• Dimensions (mm): 1500w x 800d x 1300h

Connections

• Gas 3/4” BSP female
• Gas 294/421/1021mm from right, 84mm to rear, 425mm to floor
• Supplied with gas regulator
• Water inlet 1/2” copper tube
• Water 61mm from right, 81mm to rear, 408mm to floor
• Drain 1 3/4” BSP male, drain outlet 2”
• Drain 122mm from left, 83mm from rear, 590mm to floor
• Gas Rating: 276MJ

Warranty

• 24 Months Parts and Labour
• Made in Australia
